IVPA 3500A 24V Intelligent Adjustment High Level Protection Home Use Inverter 95% Efficiency

Name: IVPA 3500A 24V Intelligent Adjustment High Level Protection Home Use Inverter 95% Efficiency
SKU: 4341
Availability: InStock

IVPA 5000A 48V Intelligent Adjustment High Level Protection Home Use Inverter 95% Efficiency

₦650,000.00

IVPS 3.5KVA 24V Upgrade System Stronger protection Built in BMS System Solar Inverter for Home Use

₦470,000.00

12 sold in last 20 hours

Hurry! Over 5 people have this in their carts

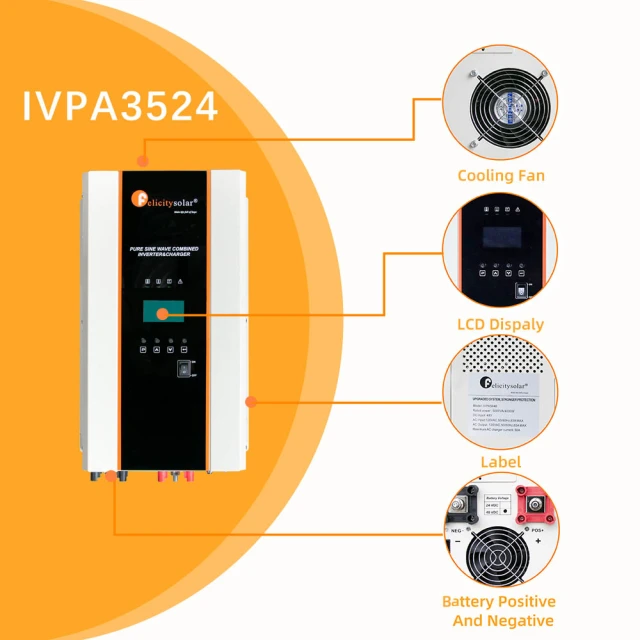

IVPA3524

Rated Output Power: 3500VA

Rated Output Power: 2800W

Nominal DC Input Voltage: 24V

Efficiency: 95% (Line Mode)

Size Guide
Size Gudes

Size Gudes
Delivery & Return
Delivery and Returns Policy
Thank you for choosing Felicity Solar! We are committed to ensuring that your shopping experience is smooth and satisfactory. Please find below the details of our delivery and returns policy for all orders:
1. Delivery within Lagos (Nigeria)
Payment Options:
Cash on Delivery (COD): Pay upon receiving your order at the delivery address.
10% Prepayment: Pay 10% of the total order value before delivery, with the remaining balance due upon receipt of the product.
Bank Transfer: Full payment is required before delivery. Our bank account details will be provided at checkout.
Delivery Timeline: Orders within Lagos are typically delivered within 3-5 business days. However, delivery time may vary depending on location and product availability.
Return Policy (Lagos Only):
If there are any damages to the product upon delivery, you have 7 days from the date of receipt to report the issue and request a return or exchange.
Return Procedure: Please inspect your product immediately upon receipt. In case of damage, contact our customer support team at [Felicity Solar Support Contact Info] within 7 days. You may be asked to provide photographs or videos of the damage for assessment.
Warranty: If the damage is covered under warranty, we will arrange for a repair, replacement, or refund according to the warranty terms.
2. Delivery to Other States in Nigeria
Payment Options:
Payment Before Delivery: Full payment is required before shipping your order. Payment can be made via bank transfer, and our bank details will be provided during checkout.
Delivery Timeline: Delivery to other states in Nigeria typically takes 5-10 business days, depending on your location and the product’s availability.
Return Policy (Outside Lagos):
You have 10 days from the date of receipt to request a return if there are any damages or issues with the product.
Return Procedure: Please inspect your product immediately upon receipt. If the product is damaged or defective, contact our customer support team at [Felicity Solar Support Contact Info] within 10 days. You may need to provide photographic evidence of the damage or defect.
Warranty: If the damage falls under our warranty coverage, we will facilitate a repair, replacement, or refund in accordance with the warranty terms.
3. Delivery Outside Nigeria (International)
Payment Options:
Payment Before Delivery: Full payment is required before dispatch. Payments can be made via international bank transfer, PayPal, or other supported payment methods.
Delivery Timeline: Delivery times for international orders can vary based on the destination country. Typical delivery times range from 10-20 business days.
Return Policy (International Orders):
You have 10 days from the date of receipt to request a return if there are any damages or issues with the product.
Return Procedure: Upon receiving a damaged product, contact our international customer support team at [Felicity Solar Support Contact Info] within 10 days. Photographs or videos of the product showing the damage or defect will be requested for assessment.
Warranty: International customers are eligible for warranty coverage. If your product is covered by the warranty, we will facilitate repairs or a replacement, depending on the terms of the warranty.
General Terms
Return Shipping: If a return is necessary, the cost of return shipping is typically the responsibility of the customer unless the return is due to a defect or shipping error on our part.
Refunds: Refunds will be processed within 7 business days after the return is received and inspected, and will be credited to the original payment method.
Damages & Defects: Please note that we cannot process returns for products that have been damaged due to misuse, neglect, or improper installation.
For any further inquiries or assistance, please don’t hesitate to contact our customer service team at [Felicity Solar Support Contact Info]. We are happy to help and ensure a smooth delivery and return process for all our customers.
Thank you for choosing Felicity Solar. We look forward to serving your renewable energy needs!
Terms and conditions are subject to change. Please review them at the time of purchase.
Ask a Question

Estimated Delivery: Mon, May 05 – Fri, May 09 (Excl Sat, Sun)

... people are viewing this right now

Guaranteed Safe Checkout

₦400,000.00

Only 100 item(s) left in stock.

IVPA 3500A 24V Intelligent Adjustment High Level Protection Home Use Inverter 95% Efficiency quantity

Description

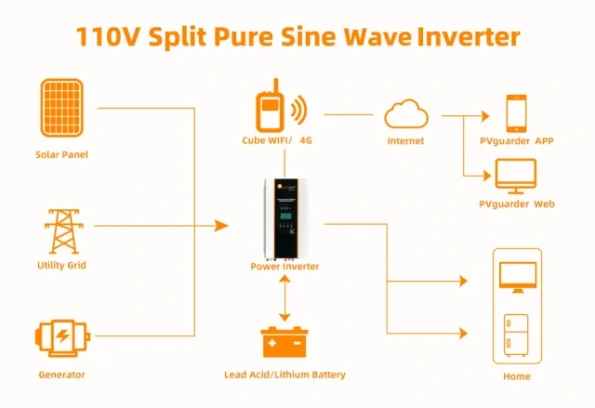

This IVPA Solar inverter, or converter, or PV inverter converts the variable DC output of a photovoltaic (PV) solar panel into a utility frequency alternating current (AC) that can be off-grid electrical network. It is a critical balance of system–component in a solar power system, allowing the use of ordinary AC-powered equipment.

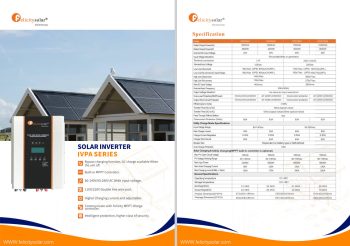

IVPA Inverter SPECIFICATIONS

Line Model Specifications
Model	IVPA3524	IVPA5048	IVPA7548	IVPA10048
Rated Output Power (A)	3500VA	5000VA	7500VA	10000VA
Rated Output Power (W)	2800W	4000W	6000W	8000W
Norminal DC Input Voltage	24V	48V	48V	48V
Input Voltage Waveform	Sinusoidal (Utility or generator)
Terminal Connection	L-N		HOT1-HOT2
Nominal Input Voltage	120Vac		220Vac
Low Line Disconnect	90±3Vac(UPS) 80±3Vac (APL)		170±7Vac(UPS) 90±7Vac (APL)
Low Line Re-connect AC Input Range	95±3Vac(UPS) 85±3Vac (APL)		180±7Vac(UPS) 100±7Vac (APL)
High Line Disconnect	140±3Vac		280±7Vac
High Line Re-connect	135±3Vac		270±7Vac
Max AC Input Voltage	140Vms		280Vms
Nominal Input Frequency	50Hz/60Hz
Low Line Frequency Disconnect	40±1Hz
Low Line Frequency Re-connect	42±1Hz
High Line Frequency Disconnect	65±1Hz
High Line Frequency Re-connect	63±1Hz
Output Voltage Waveform	Synchronize with input voltage
Over-Load Protection (SMPS load)	Overcurrent protector	Air switch protection	Overcurrent protector	Air switch protection
Output Short Circuit Protection	Overcurrent protector	Air switch protection	Overcurrent protector	Air switch protection
Efficiency (Line mode)	95%
Transfer Time (AC to DC)	15ms (typical value)
Transfer Time (DC to AC)	15ms (typical value)/30ms (special value)
Pass Through Without Battery	No
Overcurrent Protector (grid)	50A	63A	63A	63A
Utility Charge Mode Specifications
Input Voltage Range	80-140Vac		90-280Vac
Nominal Output Voltage	Depends on The Battery Types
Max Charge Current	40A	50A	60A	80A
Charge Current Regulation	0-40A	0-50A	0-60A	0-80A
Battery Initial Voltage	Circuit Breaker
Charger Short Circuit	50A	63A	63A	63A
Breaker Size	Dependent on Battery Type or Self-defined
Over Charge Protection	YES
Solar Charging & Utility Charging (MPPT built-in controller is optional)
Max PV Open Circuit Voltage	145Vdc	196Vdc	195Vdc	195Vdc
PV Voltage Working Range	30~145Vdc	60~195Vdc	60~195Vdc	60~195Vdc
Max Input Power	2200W	6600W	6600W	6600W
Max Solar Charging Current	80A	120A	120A	120A
Max Charging Current (Utility+Solar)	120A	170A	180A	200A
Charging Algorithm
Charging Way	Three Phases: Boost CC (constant current level) — Boost CV (constant voltage level) — Float (constant pressure level)
Charging Stage Transition Definitions	(1) Boost CC Stage: If A/C input is appliled, the charger will run at full current in CC mode until the charger reaches the boost voltage. (2) Boost CV Stage: the charger will keep the boost voltage in Boost CV mode until the T1 timer has run out. Then drop the voltage down to the float voltage, when the charging current is lower than 20% setting value. (3) Float Stage: In float mode, the voltage will stay at the float voltage. If the A/C is reconnected or the battery voltage drops belows 24Vdc/48Vdc, the charger will reset the cycle above.
Battery Type Setting	Battery Type		Boost CC, CV	Float
			24/48	24/48
	AGM		28.8/57.6	27.2/54.4
	Flooded		29.2/58.4	27.6/55.2
	Self Defined		Adjustable, up tp 31.5/61.0
Inverter Mode Specifications
Model	IVPA3525	IVPA5048	IVPA7548	IVPA10048
Output Voltage Waveform	Pure Sine Wave
Nominal Output Voltage	110/120/127Vac±5% (L-N)		220/240Vac±5% (HOT1-HOT2)
Split-Phase Output Voltage	/		110/120Vac±5% (HOT1-N or HOT2-N)
Nominal Output Frequency (Hz)	50±0.3Hz/60±0.3Hz (adjustable)
Output Voltage Regulation	±5% rms
Peak Efficiency	90%
Over-Load Protection (SMPS load)	5s @≥150% load; 10s @ 105%-150% load
Surge Rating	2 times rated overload power 5S
Capable of Starting Electric	YES
Output Short Circuit Protection	YES
Norminal DC Input Voltage	24V	48V
Min DC Starting Voltage	23V	46V
Battery Low Voltage Alarm	23Vdc@load<50% 22Vdc@load≥50%	46Vdc@load<50%; 44Vdc@load≥50%
Battery Low Voltage Re-connection	23.5Vdc@load<50% 23Vdc@load≥50%	47Vdc@load<50%; 46Vdc@load≥50%
DC Low Voltage Disconnection	21.5Vdc@load<50% 21Vdc@load≥50%	43Vdc@load<50%; 42Vdc@load≥50%
High DC Input Alarm & Fault	31.5Vdc±0.4V	63Vdc±0.4V
High DC Input Recovery	31Vdc±0.4V	62Vdc±0.4V
General Specifications
Operating Temperature	0 ℃ ~ 40 ℃
Storage Temperature	-15 ℃ ~ 60 ℃
Net Weight (KG)	30.4 KG	30 KG	38.1 KG	55.9 KG
Gross Weight (KG)	33.5 KG	32.8KG	41.6 KG	67.2 KG
Product Dimension (mm)	440391195 mm	494420195 mm		580420195 mm
Package Dimension (mm)	552408290 mm	607540290 mm		690480335 mm
